- 依客思铸钢不锈钢防爆过线穿线铝合金分线盒C直通弯通三通元宝通-G3/4BHC
详细信息
材质:铝合金 钢板焊接 不锈钢 品牌:依客思 型号:BHC 壁厚:3MM 等级:EXebIIC Gb 直径:15、20、25、32、40、50
◆ 适用于ⅡA、ⅡB、ⅡC级爆炸性气体环境;
◆ 适用于可燃性粉尘环境20区、21区、22区
◆ 适用于温度组别为T1-T6的环境;
◆ 适用于石油采炼、储存、化工、医药、军工及军事设施等爆炸性危险环境。
产品特点
◆ 铝合金产品外壳表面高压静电喷塑、铸钢产品表面镀锌处理;
◆ 结合型式多样,满足现场各种布线需要;
◆ 不锈钢外露紧固件。

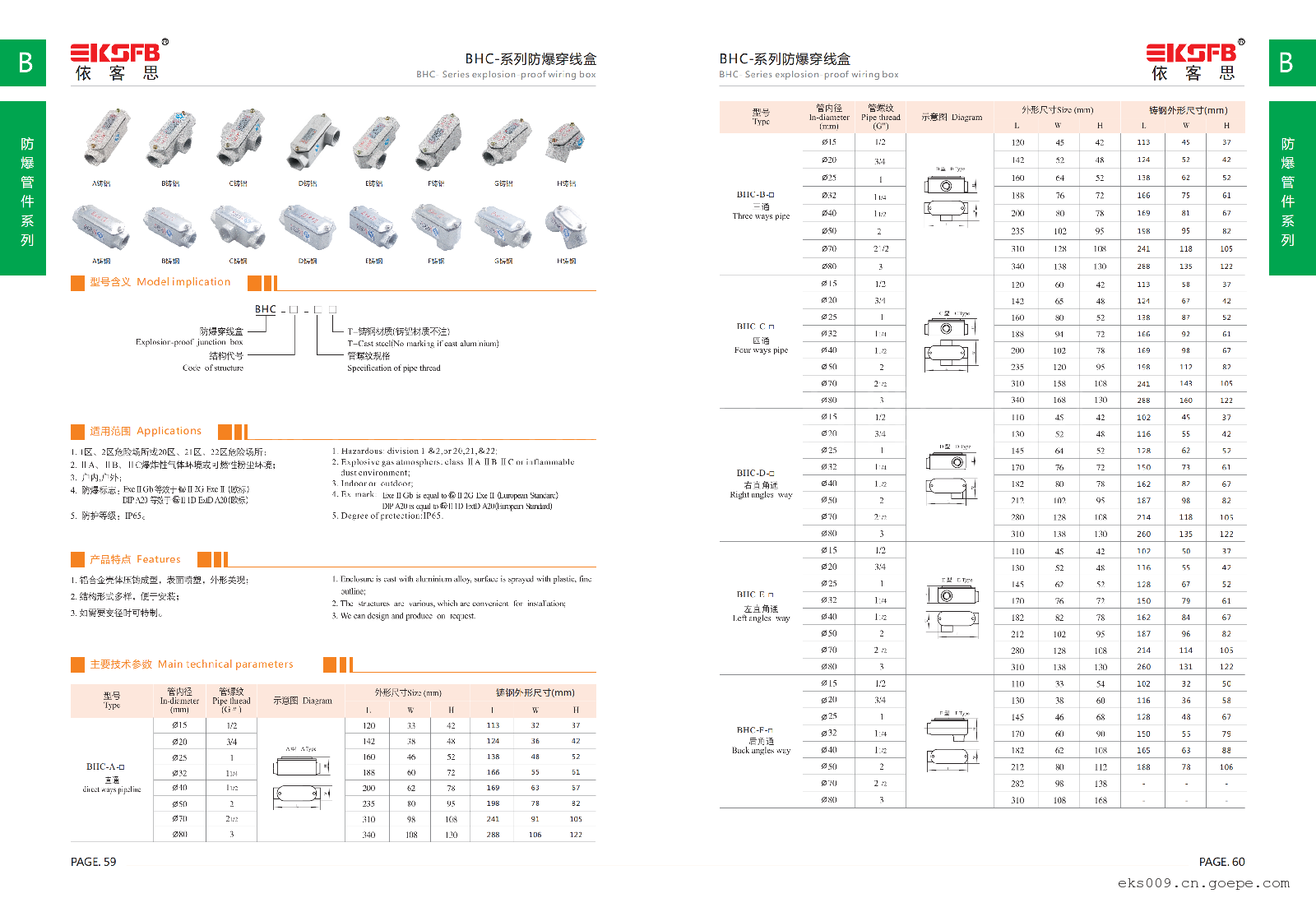

技术参数
执行标准:GB 3836.1、GB 3836.3、IEC60079
额定标志:ExeⅡ
防护等级:IP55
防腐等级:WF1
产品优点
1、本产品为增安型结构;
2、外壳为铸铝合金,采用先进的高温一次压铸成型工艺,表面光滑,外观精致美观。金属结构致密度高,内部无气泡、无砂眼,抗冲击性能好(可达7J),外壳防爆性能好,永久性防爆标志直接压制其上;
3、产品外壳先进行高速抛丸清理,再采用高压静电喷塑工艺,塑粉附着力强,具有良好的防腐、抗氧化、抗静电、抗日照等性能;
4、产品体与盖的结合面采用橡皮密封,密封性好,防水性能极强;
5、结构形式多样,客户可按需选用;
该产品材质为铸钢材质,客户可按要求进行选用
6:防爆穿线盒DN15三通直通左通右通四通BHC铝合金元宝过线盒4分
7:铝合金防爆穿线盒 2寸弯头直通三通 元宝弯通防爆过线盒证书齐全
Applicable range: suitable for Class IIA, IIB, IIC explosive gas environment; suitable for combustible dust environment in 20,21 and 22 zones; It is suitable for explosive hazardous environment such as oil extraction, storage, chemical industry, medicine, military industry and military facilities. High-voltage electrostatic spraying on the surface of aluminum alloy products and galvanizing on the surface of cast steel products; various types of combination to meet the needs of various wiring on site; stainless steel exposed fasteners. Technical parameters, implementation standard: GB 3836.1, GB 3836.3, IEC 60079 rating marks: Exeii Protection Grade: IP55 anti-corrosion grade: WF1 product advantages 1, this product is increased safety structure; 2, the shell is cast aluminum alloy, adopt advanced high-temperature one-time die-casting molding technology, the surface is smooth, the appearance is exquisite and beautiful. High density metal structure, no air bubbles, no sand holes, good impact resistance (up to 7J) , the shell explosion-proof performance is good, the permanent explosion-proof sign directly pressed on it; 3, the product shell first high-speed shot blasting cleaning, then using high-voltage electrostatic spray process, plastic powder strong adhesion, with good corrosion, anti-oxidation, anti-static, anti-sunshine and other properties. 4, the body and the cover of the combination of rubber seal, sealing, the waterproof performance is extremely strong; 5, the structure form is diverse, the customer may choose according to need; this product material is the cast steel material, the customer may carry on the choice according to the request
-
